Project Description

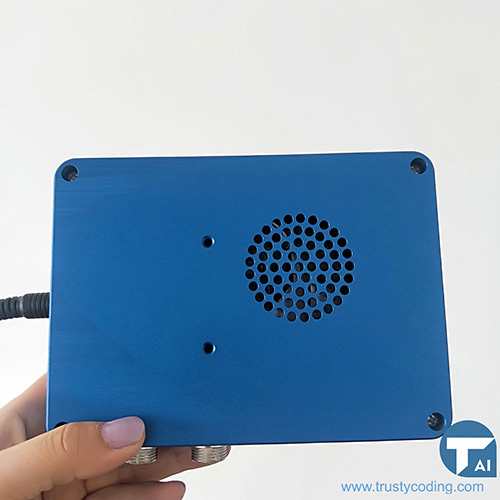

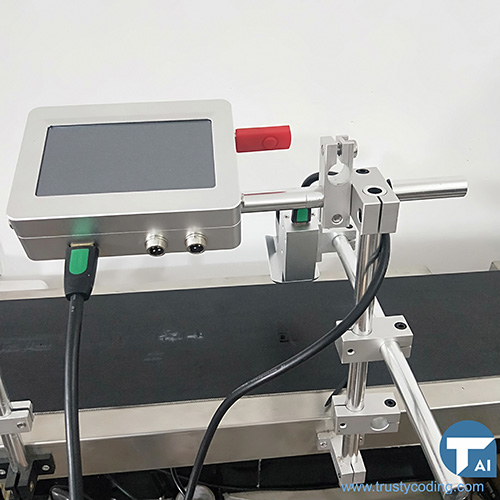

Mobile Printer

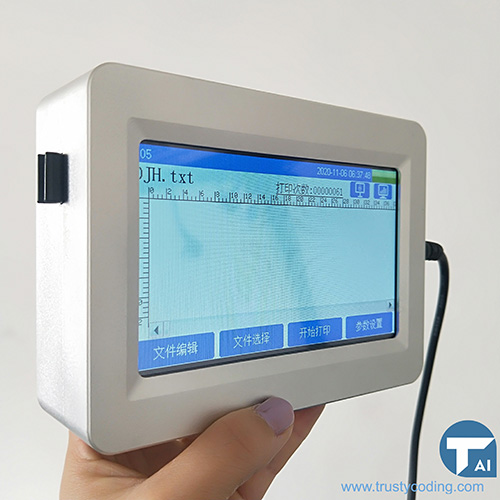

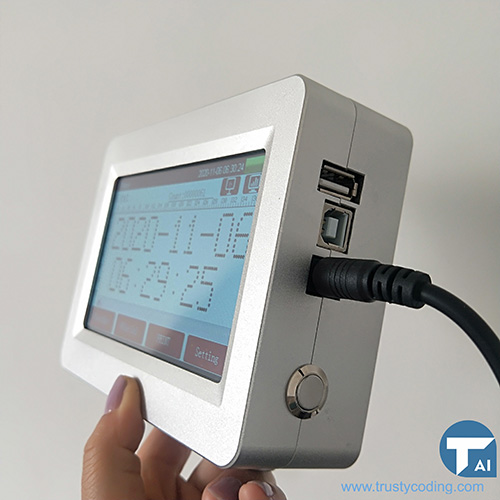

Mobile printer blue screen

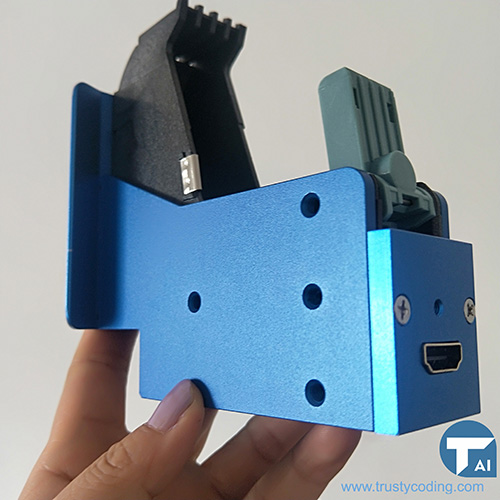

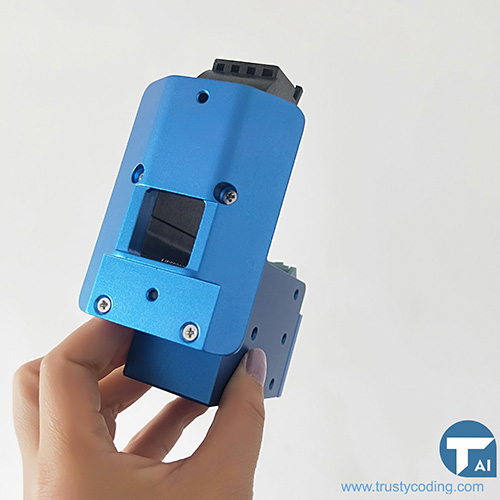

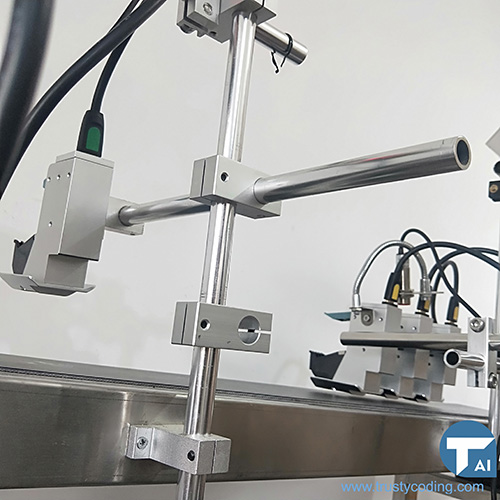

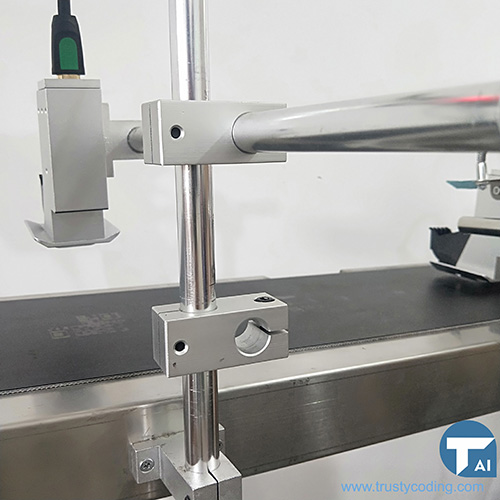

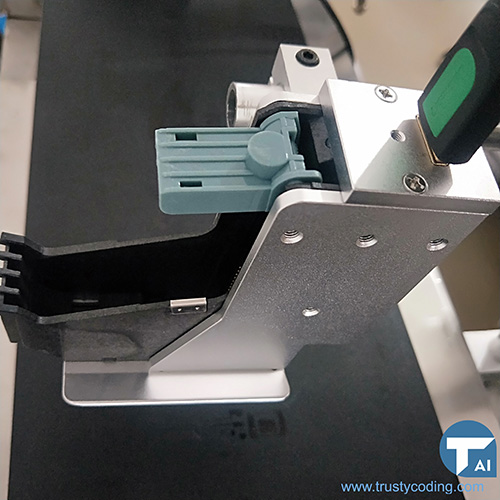

Mobile printer blue printhead
| Model | T002 Online Muli-head TIJ iInkjet Printer |
| Machine Features | Industrial grade (aviation aluminium )
5 inch colorful touch screen(single printhead) 9 inch colorful touch screen( multi-head) |
| Machine Size | 150mm* 110mm*18mm (body size of single printhead)
250mm* 175mm*35mm(body size of multi heads) 160mm* 165mm*110mm (head size of single printhead) |
| Print DPI | Resolution 600*600 DPI |
| Print Direction | 360 degree printing(up,down,backward,forward etc) |

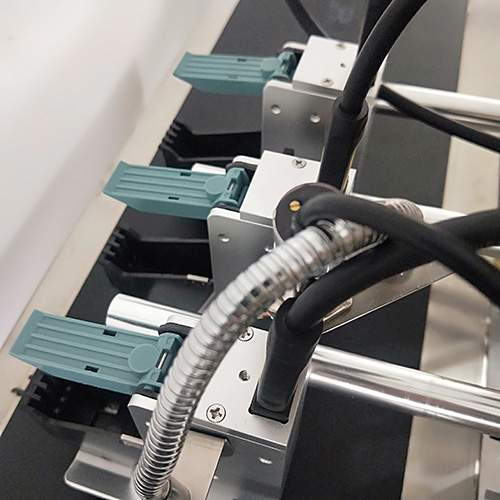

| Print Height | 1-101.6mm ( 12.7mm,25.4mm printheads optional,up to 4 heads) |
| Print Lines | 1-8 lines adjustable |
| Print Distance | 2-10mm（Appropriate distance from object） |
| Print Speed | 80m/min(speed will not vary according to different lines) |
| Printing Contents | Date,time,lots,batch number,1-8 bits variable serial number (vary according to the current date and time),logo and image(inserted to printer by usb.) |
| Messages Capacity | Above 2000 pcs (can be kept in the U disk and used at any time) |
| Ink Color | Dry black, red, white, blue, yellow,invisible fast dry (red and blue),UV |
| Cartridge Capacity | 45ml,80million characters(2mm high) |
| Ink Type | Fast dry ink, water-based ink,oil-based ink |
| Operating System (OS) | Embedded Linux system |

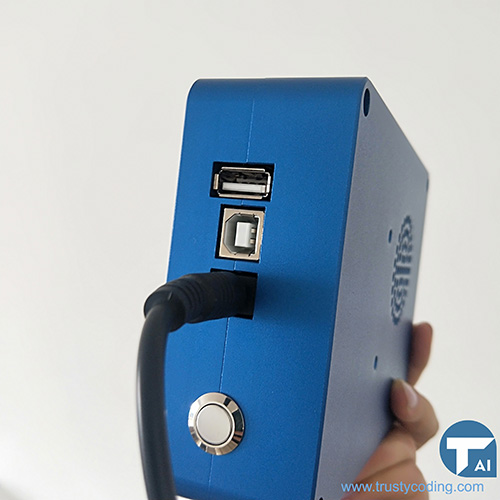

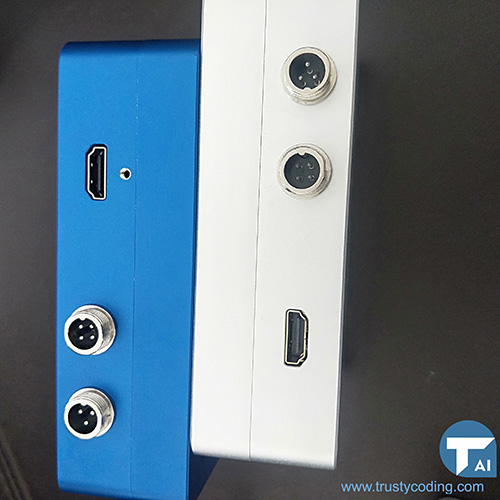

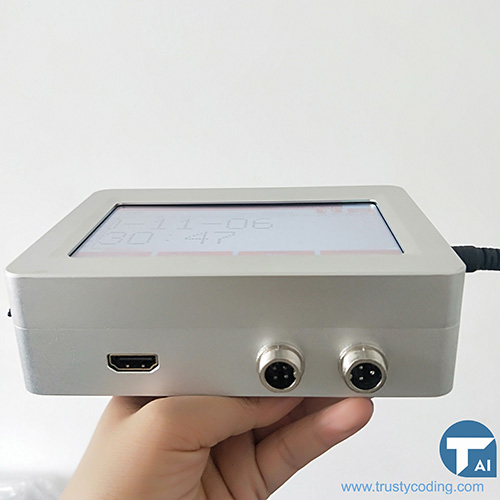

| Interface | USB ,DB9,DB15, electric eye, synchronizer etc. |
| Supporting Language | Free switching of multinational languages (including input method) for over 28 kinds of languages |
| Power Supply | DC16.8V |
| Print Materials | Carton box,wood,MDF board,stone,pipe,metal,plastic,alunimum etc. |
| Working Environment |
Temperature: 0–38degree; humidity: 10-80% RH |
Product Features
Well-sold face mask printer during COVID-19
High print speed: up to 406m/min
Separated printer body and head
Super grade industrial aviation aluminum material
